Wireless Sensors

WEMS range of wireless room sensors provide indoor and outdoor environmental data you need to for a comfortable and safe system operation. With no cables to run, sensors can be mounted in almost any environment in a matter of minutes.

Brands

Description

WEMS range of wireless sensors provide indoor and outdoor environmental data you need to for a comfortable and safe system operation. With no cables to run, sensors can be mounted in almost any environment in a matter of minutes.

WEMs high-performance wireless room sensors operate using 434MHz or 915MHz for maximum penetration within a building, feeding vital environmental details back to your chosen BMS.
Each sensor can communicate directly with a Site Manager or BACnet Gateway, or can be routed via the nearest module cluster to provide a greater range.
The sensor casing has a discrete design which enables it to blend into any background. Room sensors contain a 9V Lithium battery that provides 3-5 years of use (depending on configuration and environmental conditions).

Outside sensors are battery powered, designed to provide accurate readings and be installed with ease. Each sensor also includes a single digital input for local status or alarms. Sensors are IP65 rated for external use and can operate using 434MHz or 915MHz frequencies.

Our duct & pipe sensors are battery- powered, designed to provide accurate  readings and be installed into your duct- work, AHU or onto your pipe work with ease. The duct sensor comes in three different  varieties:
> temperature
> temperature and humidity
> CO2
The pipe sensor measures temperature only, but also has one digital input which can be configured for status or alarms. Temperature is read using a flying lead with a flat brass fitting.
Each sensor is IP65 rated for use within harsh environments and can operate using 434MHz or 915MHz frequencies.

Other sensors available include; differential pressure, universal, meter and keyswtich. Click through the different product tabs to find our more information.

  Check out our WEMS NZ Linkedin Showcase Page to keep up with the latest on WEMS at Eurotec www.linkedin.com/showcase/wems-nz

Enquire about Wireless Sensors


Room Sensors

The WEMs room sensors have a discrete case design which enables it to blend into any background. Room sensors contain a 9V Lithium battery that provides 3-5 years of use (depending on configuration and environmental conditions).
Each sensor can communicate directly with a WEMS BACnet Gateway, or can be routed via the nearest MX module cluster to provide a greater range.

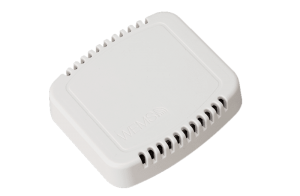

Room Temperature Sensor
The wireless room sensor provides room space temperature and battery voltage status.

Features
> High performance wireless narrow band operation
> License-free use
> 69 RF channels
> Long battery life, up to 5 years
> Accurate space temperature readings
> Tamper-proof enclosure
> 2 year warranty
> CE Certification

Room Temperature & Humidity Sensor
The wireless room humidity sensor provides relative humidity, room space temperature, light level and battery voltage status.

Features
> Relative humidity & space temperature sensor
> High performance wireless narrow band operation
> License-free use (ISM bands)
> 69 RF channels
> Long battery life
> Tamper proof enclosure
> 2 year warranty
> CE Certification

Room Temperature & Light Sensor
This wireless room sensor provides room space temperature, light level and battery voltage status.

Features
> Accurate space temperature readings
> Light level sensor
> High performance wireless narrow band operation
> License-free use (ISM bands)
> 69 RF channels
> Long battery life, up to 5 years
> Tamper proof enclosure
> 2 year warranty
> CE Certification

Room Temperature, Light & Presence Sensor
This wireless room sensor provides room space temperature, light level, presence detection and battery voltage status.

Features
> Five metre presence detection range
> Temperature, light & presence sensors
> Accurate space temperature readings
> High performance wireless narrow band operation
> License-free use (ISM band)
> 69 selectable RF channels
> Long battery life
> Tamper proof enclosure
> 2 year warranty
> CE Certification

Outdoor Sensors

The outside sensors are battery powered, designed to provide accurate readings and be installed with ease. Each sensor also includes a single digital input for local status or alarms. Sensors are IP65 rated for external use and can operate using 434MHz or 915MHz frequencies.

Outdoor Temperature Sensor
Features
> Accurate temperature readings
> High performance wireless narrow-band operation
> License-free use (ISM bands)
> 69 RF channels
> IP65 rated
> Conformal coated to protect against condensation
> Long battery life
> 2 year warranty
> CE Certification

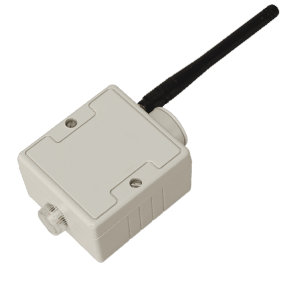

Outdoor Temperature & Light Sensor
Features
> Accurate temperature readings
> Light level sensor
> High performance wireless narrow-band operation
> License-free use (ISM bands)
> 69 RF channels
> IP65 rated
> Conformal coated to protect against condensation
> Long battery life
> 2 year warranty
> CE Certification

Duct & Pipe Sensors

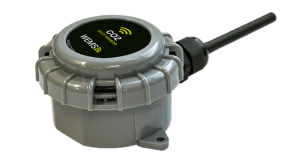

Duct CO2 Sensor
The WEMS CO2 duct sensor is a battery powered wireless device; providing CO2 measurements with a range of 0 to 5,000ppm. Designed to be mounted on air ducting for monitoring of ventilation and air conditioning systems, typical on the supply and return.

Features
> 0-5,000ppm range
> Duct mount
> High performance wireless narrow-band operation
> License-free use (ISM band)
> Low power, long battery life

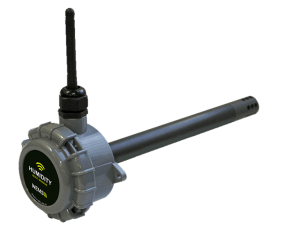

Duct Temperature & Humidity Sensor
The Temperature and Humidity duct sensor is a battery powered wireless device; providing temperature measurements with a range of -40 to +120°C and humidity measurements with a range of 0 to 100% RH. Designed to be mounted on air ducting for monitoring of ventilation and air conditioning systems, typically on the supply and return.

Features
> Relative humidity sensor
> Temperature sensor
> Duct mount
> High performance wireless narrow-band operation
> License-free use (ISM band)
> Low power, long battery life
> 2 year warranty
> CE Certification

Each sensor can communicate directly with a WEMS BACnet Gateway, or can be routed via the nearest MX module cluster to provide a greater range.

Other Sensors

Each sensor can communicate directly with a WEMS BACnet Gateway, or can be routed via the nearest MX module cluster to provide a greater range.

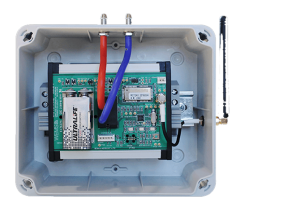

Differential Pressure Sensor
The differential air pressure sensor is battery powered and provides differential pressure measurements with a range of -500 to +500 Pa. It is typically used in ventilation systems to monitor filters (filter dirty detection) and differential air pressure in clean rooms.

Features
> Differential pressure range of -500 to +500 Pa
> High performance wireless narrow band operation
> License-free use (ISM bands)
> DIN rail mounted
> Long battery life
> 2 year warranty
> CE Certification

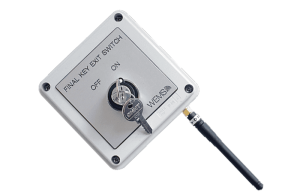

Final Exit Keyswitch
Our final exit keyswitch uses a digital input to enable or disable plant at the turn of a key. The keyswitch is battery-powered, and can be located at a fixed position, or moved around as required.

Features
> Keyswitch linked to digital input
> High performance wireless narrow band operation
> License-free use (ISM bands)
> 69 RF channels
> Long battery life
> 2 year warranty
> CE Certification

Meter Sensor
Our meter sensor provides one digital (volt-free) input for status or pulse meter counting. It has a conformal coating and has been certified for zero-rated areas, so can be used with gas meters.

Features
> Digital input configurable for pulsed inputs
> High performance wireless narrow band operation
> License-free use (ISM bands)
> 69 RF channels
> IP65 rated
> Conformal coated to protect against condensation
> Long battery life
> 2 year warranty
> CE Certification

Universal Sensor
The Universal sensor is ideal for a multitude of BMS applications. It provides one digital input, two temperature/light sensor inputs and battery status.

Features
> 2 × thermistor/light sensor inputs
> Digital input configurable for status or alarm
> High performance wireless narrow band operation
> License-free use
> 69 RF channels
> IP65 rated
> Conformal coated to protect against condensation
> Long battery life
> 2 year warranty
> CE Certification
