Eurotec is proud to be the exclusive distributor of ORBIS products in NZ and is pleased to bring the VIARIS range of EV chargers to the local market.

Eurotec is proud to be the exclusive distributor of ORBIS products in NZ and is pleased to bring the VIARIS range of EV chargers to the local market.

The VIARIS EV chargers from Orbis are some of the most comprehensive and efficient chargers for public spaces and private use with cutting-edge technology and design. Purposefully designed for quick and convenient installation and compatible with all Type 2 EV Cars on the road (Type 1 versions available on request). With a wide range of customisable options available on all units, we can provide the solution to your EV charging needs.

WHY CHOOSE VIARIS EV CHARGERS?

EASY INSTALLATION

Designed for convenient and quick wall-mounted installation

SMART CHARGERS

All ORBIS chargers are Wi-Fi enabled to communicate with your car allowing for status updates.

POWER

3kW to 22kW Electric Vehicle chargers available across the entire VIARIS range.

CHARGE MODULATION

ORBIS Chargers have Charge Modulation allowing you to maximise your charge and minimise home disruption.

COMPATIBILITY

ORBIS EV Chargers are compatible with all EV Cars on the road (adaptor is required for vehicles with Type 1 and Tesla sockets).

QUALITY

European Design,
Build and Style.

All VIARIS Electric Vehicle Chargers come with a 3-year warranty from the date of installation.

ENQUIRE NOW

VIARIS MODELS

VIARIS UNI &
VIARIS COMBI+

VIARIS CITY

VIARIS ACCESSORIES

SPL NETWORK
ANALYSER

e-VIARIS APP

VIARIS TESTER

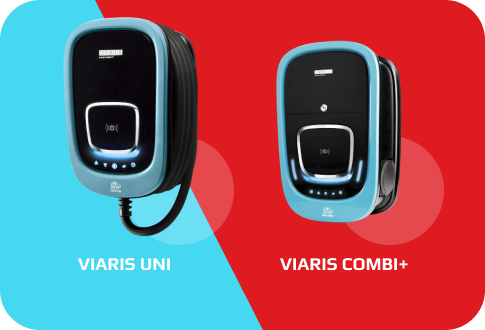

VIARIS UNI & VIARIS COMBI+

VIARIS UNI and COMBI+ EV chargers offer streamline design, simplicity and user friendliness with WIFI communications and easy installation. They are especially recommended for residential use in single-family homes or communal car parks, and for tertiary sector car parks in office buildings, shopping centres, hotels, companies, hospitals, etc.

INCLUDED AS STANDARD

  • Charge Modulator
  • Leakage Current Detector.
  • Touch or RFID activation.
  • Maximum power limitation.
  • Wi-Fi communication and Ethernet port.
  • IP54 and high heat distortion temperature.
  • ABS-PC heavy-duty housing with IK10 impact resistance

AVAILABLE OPTIONS

  • Any combination of the socket and tethered outlet is available with COMBI+.
  • SPL Network Analyser for load modulation on larger installations.
  • MID Certi?ed Meter Reader.
  • Green, Red and White frames are available.
  • 5 and 10-metre cables, Single Phase and Three Phase.
  • 5 Pre-programmed RFID cards.

FEATURES

  • Single (UNI) and Dual (COMBI+) outlets.
  • Suitable for all EV and PHEVs vehicles.
  • 7.4kW Single Phase.
  • 22kW Three Phase.
  • Charging Mode 3.
  • 5m or 10m tethered cable.
  • Socket or tethered outlet.
  • The Free VIARIS app allows full remote management and monitoring of your charging system from your mobile device.

FEATURES

  • Single (UNI) and Dual (COMBI+) outlets.
  • Suitable for all EV and PHEVs vehicles.
  • 7.4kW Single Phase.
  • 22kW Three Phase.
  • Charging Mode 3.
  • 5m or 10m tethered cable.
  • Socket or tethered outlet.
  • The Free VIARIS app allows full remote management and monitoring of your charging system from your mobile device.

For more video resources check out our VIARIS YouTube playlist HERE

VIARIS CITY

Electric vehicle charger for outdoor use in public environments. The VIARIS CITY charger is capable of meeting different management needs, from individual connection points to municipal or corporate charging networks, with a management platform on the charger. It includes smart load balancing between the power outputs that distribute the available power according to the level of charge of the vehicles. In other words, VIARIS CITY gives more power to the output of the vehicle with the least charge.

WHAT ARE THE ADVANTAGES OF VIARIS CITY?

  • METAL ENCLOSURE Robust equipment with metal structure. Especially suited for outdoor installation. Equipped with protection rating IK10/IP54. Tamper-proof enclosure, key locked.
  • EASY TO USE AND INSTALL The integrated WIFI module simplifies remote control, programming and history log reading from your mobile phone.
  • VIARIS MANAGEMENT PLATFORM Capable of covering different management needs, from individual charging points to town or corporate charging networks with a charging point management platform.

INCLUDED AS STANDARD

  • RFID card reader.
  • Built-in schedule programming.
  • Built-in Wi-Fi communication.
  • Display and configuration possible via the embedded website.
  • Tamper-proof housing.
  • Space for protective devices (16 modules wide).
  • Remote software updating.

AVAILABLE OPTIONS

  • Electrical protection.
  • MID-certified meter.
  • ETHERNET and 3G modem communications.
  • Charging modulator.
  • VIARIS management platform.
  • SPL-ORBIS solutions.
  • Metal pedestal and fixing accessories.

FEATURES

  • IK10 in accordance with EN 62262
  • IP 54 in accordance with EN 60529
  • 3.7 kW – 7.4 kW single-phase power.
  • 11 kW – 22 kW – 43 kW three-phase power.
  • Charging mode 3.
  • Available with one or two Type 2 sockets.
  • Models with connection base socket include an interlock to prevent accidental disconnection while charging.
  • Compatible with system integrators.

FEATURES

  • IK10 in accordance with EN 62262
  • IP 54 in accordance with EN 60529
  • 3.7 kW – 7.4 kW single-phase power.
  • 11 kW – 22 kW – 43 kW three-phase power.
  • Charging mode 3.
  • Available with one or two Type 2 sockets.
  • Models with connection base socket include an interlock to prevent accidental disconnection while charging.
  • Compatible with system integrators.

For more video resources check out our VIARIS YouTube playlist HERE

SMART APP FOR SMART CHARGERS

HOW IT WORKS?

EXTRAS & ACCESSORIES

LOAD MODULATOR

Minimise disruption. Maximise your charge.
All ORBIS EV chargers come with a load modulator. This smart system regulates the charging power according to the current energy consumption of the building.

  • Avoid costs and complications associated with the increase in power usage for EV charging
  • Eliminate the need to increase the power of the installation
  • Take advantage of all available power
  • Considerably reduce charging times
  • Prevent circuit breakers tripping from over consumption
  • Ideal for new and existing constructions
  • Install a larger number of EV chargers with the SPL Network Analyser
For more video resources check out our VIARIS YouTube playlist HERE
SPL NETWORK ANALYSER

For larger installations with several charging points, Orbis has developed the SPL-Orbis system.

The SPL will temporarily reduce the power used to charge electric vehicles preventing power outages in the entire building whilst protecting against over consumption on the main incoming power supply.

  • Allows up to 248 VIARIS charging points
  • Charge up to 496 vehicles
For more video resources check out our VIARIS YouTube playlist HERE

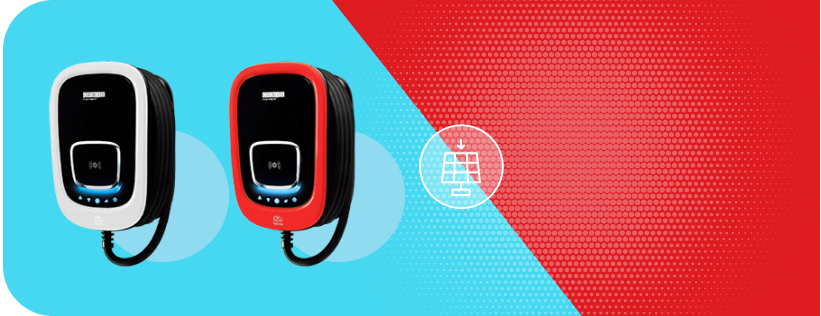

VIARIS SOLAR

Harness the power of solar energy.

The CONTAX D-10011 / CONTAX D-8043 modules can be externally ?tted to any new or existing VIARIS UNI and COMBI+ to create the VIARIS SOLAR.

Once installed, this environmentally sustainable EV solution allows you to harness the electricity generated from your PV system (solar panels).

  • Compatible with solar panels in any photovoltaic (PV) system
  • Single Phase & Three Phase
  • Din rail mounted
  • RS485 port and Modbus protocol
  • Three charging modes:
  • FULL SOLAR, HYBRID, MAX GRID

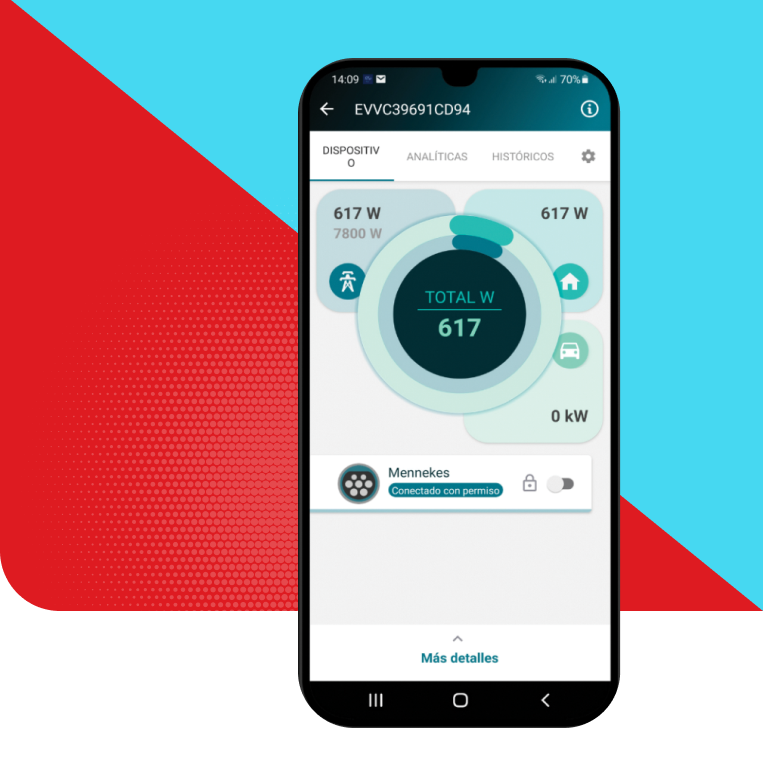

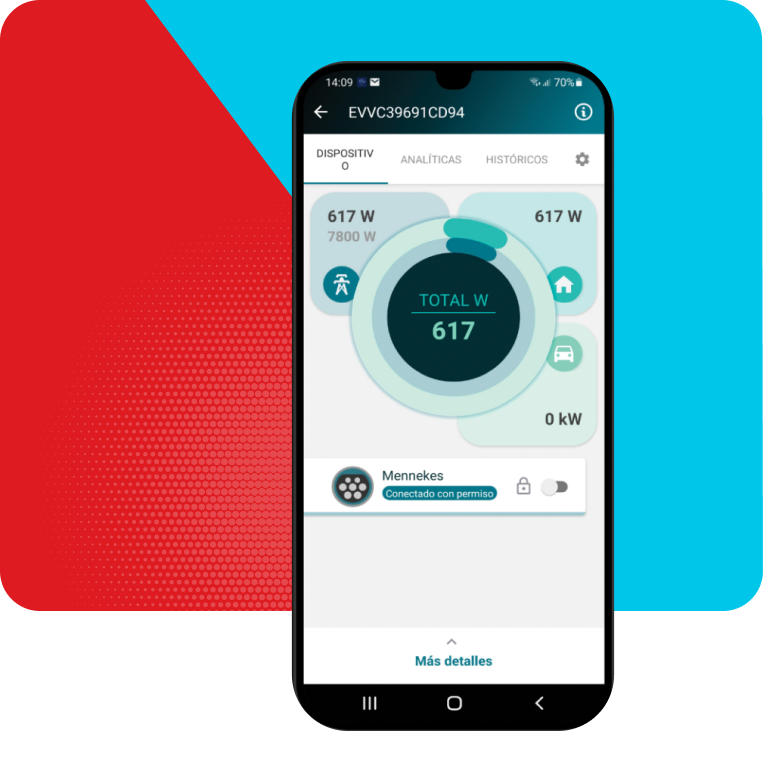

e-VIARIS APP

The free e-VIARIS app allows full remote management and monitoring of your VIARIS UNI and VIARIS COMBI+ Smart Chargers from your smartphone or tablet.

  • Remote switching on and off
  • Real-time information for property and electric vehicle energy consumption
  • Set preferred charging periods
  • Charging status noti?cations
  • Manage one or more VIARIS units
  • Record of property and vehicle consumption per hour, day or month
  • Query the charging time and consumption of each vehicle to allocate energy costs
  • Query consumption habits per weekdays or time slots
  • Free download for iPhone and Android

For more insights and greater control download the free app from Google Play and the App Store.

e-VIARIS APP

The free e-VIARIS app allows full remote management and monitoring of your VIARIS UNI and VIARIS COMBI+ Smart Chargers from your smartphone or tablet.

  • Remote switching on and off
  • Real-time information for property and electric vehicle energy consumption
  • Set preferred charging periods
  • Charging status noti?cations
  • Manage one or more VIARIS units
  • Record of property and vehicle consumption per hour, day or month
  • Query the charging time and consumption of each vehicle to allocate energy costs
  • Query consumption habits per weekdays or time slots
  • Free download for iPhone and Android

For more insights and greater control download the free app from Google Play and the App Store.

VIARIS TESTER

This EV charger test tool veri?es charger performance by simulating connection to an electric vehicle ensuring correct operation of the charger before commissioning. It can be used in Electric Vehicle charging station installations in homes, apartment blocks, car parks, office buildings, vehicle fleets, etc.

  • Valid for 13, 20, 32 and 64 Amp chargers
  • External charging socket for generation of real consumption (Max 8A)
  • Presence and phase sequence indicator
  • Simulates vehicle status (connected, disconnected, charging)
  • Compliant with UNE-EN 61851-1 standard
  • DC 6mA fault current test (RCD-DD)
  • Indicator display vehicle status, active phases, charging current and power, grounding veri?cation
  • EV fault simulator
  • Check electrical protection and grounding
  • AC 30mA residual current test
  • Valid for 13, 20, 32 and 64 Amp chargers
  • External charging socket for generation of real consumption (Max 8A)
  • Presence and phase sequence indicator
  • Simulates vehicle status (connected, disconnected, charging)
  • Compliant with UNE-EN 61851-1 standard
  • DC 6mA fault current test (RCD-DD)
  • Indicator display vehicle status, active phases, charging current and power, grounding veri?cation
  • EV fault simulator
  • Check electrical protection and grounding
  • AC 30mA residual current test
  • Valid for 13, 20, 32 and 64 Amp chargers
  • External charging socket for generation of real consumption (Max 8A)
  • Presence and phase sequence indicator
  • Simulates vehicle status (connected, disconnected, charging)
  • Compliant with UNE-EN 61851-1 standard
  • DC 6mA fault current test (RCD-DD)
  • Indicator display vehicle status, active phases, charging current and power, grounding veri?cation
  • EV fault simulator
  • Check electrical protection and grounding
  • AC 30mA residual current test

FAQ’s

If I have a 43 kW charger, why divide this power equally between the two outputs? Why not adapt the output power to the vehicle’s charging capacity?

Thanks to the Orbis Intelligent Power Balance System, two vehicles can recharge at the same time to their maximum allowable power, which greatly reduces recharging times. Find out more about the balance system in this video https://youtu.be/AZ7W2Bq17QI

How do I keep my VIARIS charger updated?

We recommend you always update your EV charger to ensure the best performance and to enjoy the latest new features that we periodically add. Watch the video to learn step by step how to update the Firmware of your VIARIS UNI or VIARIS COMBI with our e-VIARIS App. https://youtu.be/2Uc7SDjWQOo

How do I register in the VIARIS App?

Registering a new user and VIARIS charger is simple.  After downloading the e-VIARIS App, you can create a new user with your email address and by setting a password, then connect to the Wi-Fi network of your VIARIS charger. By following these simple steps, you will be able to:

  • Configure your password.
  • Set the maximum charging power.
  • Discover many more functionalities from the VIARIS App.

Follow the full set up in this video https://youtu.be/LcvGmS4iB3Q
